What is standard barrel thread?
9/16×24 is typically the most common thread for .
What size is a threaded barrel?
Typically, many rifles use thread diameters in the range between 25–27 mm (0.98–1.06 in). Many older rifles from the first half of the 20th century use a thread pitch around 2 mm (12.7 TPI), while many modern rifle use thread pitches around 1.5 mm (16.93 TPI).
What thread pitch is a 9mm AR barrel?
COMMON THREAD PITCHES
| By Thread Pitch | |
|---|---|
| 1/2-28 | .22lr Rifle & Pistol 9mm Pistols (Beretta, Glock, Springfield) 5.56 / .223 Rifles (AR-15s) |
| 1/2-36 | 9mm Rifles (AR variants) |
| .578-28 | .45 ACP Pistols (1911, FN, Sig) |
| 9/16-24 RH | 40 S&W Pistols (Beretta, Glock) 5.56 / .223 (AC556, Mini-14) |
Is a threaded barrel longer?
Pistol calibers are typically pretty slow compared to center fire. The reason the threaded barrel is longer is because you need the barrel to extend past the slide in order to thread on the suppressor.
What is a thread diameter?

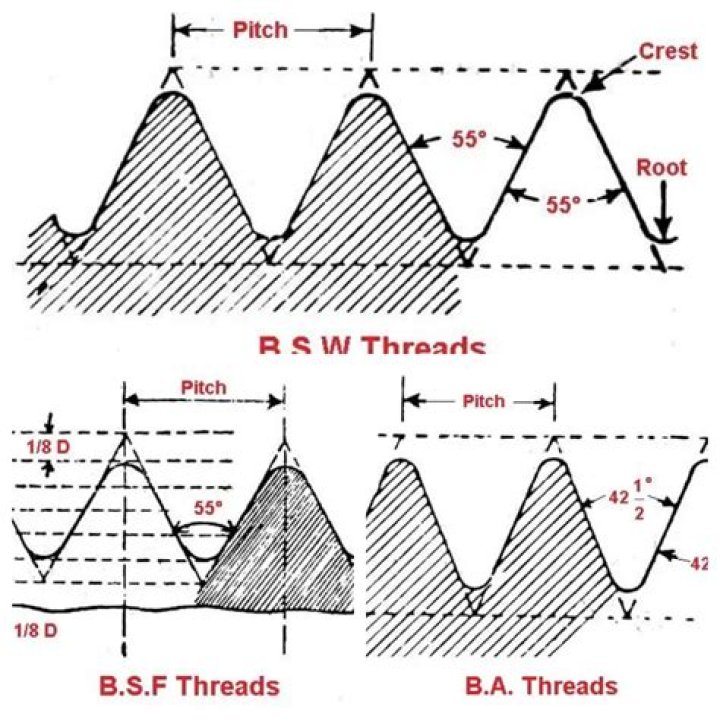

The major diameter of a thread is the diameter of the imaginary co-axial cylinder that just touches the crest of an external thread or the root of an internal thread. The minor diameter is the diameter of an imaginary cylinder that just touches the roots of an external thread and (or) the crests of an internal thread.
What are the dimensions of the FAL thread guide?
FAL thread guide Receiver Barrel RECEIVER METRIC INCH/commonwealth Israeli Barrel 1″x16 1″x16 Gas tube nut 9/16″x24 9/16″x24 9/16″x24 Take down pin assy 1/4″x32 1/4″x28 BHO/Mag release screw pin
What is the headspace of a FAL bolt?
With reference to the FAL, the headspace dimension is that distance from the bolt face to the portion of the chamber where the internal diameter is exactly 0.400″. As with many mechanical assemblies, this distance is expressed as a tolerance, rather than an absolute. According to FN, the headspace tolerance for an FAL is:
What are the dimensions of an HB barrel?
BARREL ASSEMBLY METRIC INCH/commonwealth Israeli Israeli HB Barrel 1×16 1×16 Gas tube/sight block 17/32″X36 17/32″X36
How tight should the barrel on a rifle be?
These were exactly the results that were sought. The barrel should tighten to within 30 degrees (between 11 and 12 o’clock if you think of it using the clock scale) of proper vertical alignment if both the receiver and barrel threads have been properly cut.
